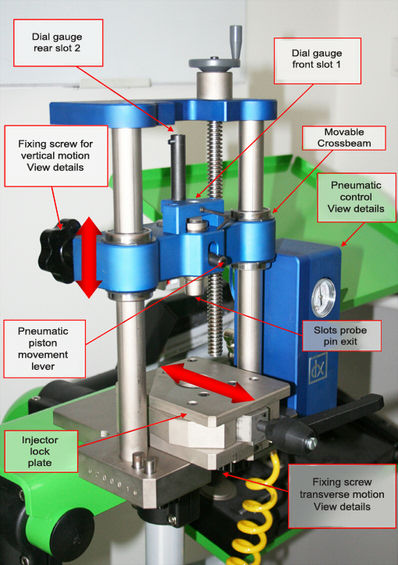

NOMENCLATURE

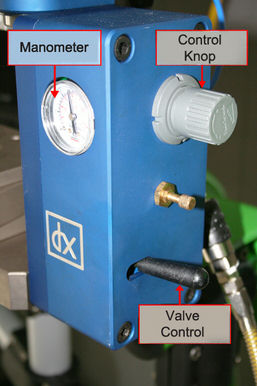

Trickytec Tool Pneumatic Control
Fixing Screw for Vertical Motion Fixing Screw Transverse Motion
IMPORTANT: when the vertical motion is blocked it has to be controlled that the wheel on the top of the Tricky is "free" and it does not force the moveable cross bean compromising the correct aligment.
DX75625 CASE
COMPONENTS
| NUMBER | COD. | DESCRIPTION |
| 01 | DX75622 | Nozzle support |
| 02 | DX75623 DX75638 |
Siemens plate ± 25 mm Siemens plate ± 27 mm |
| 03 | DX75633 |
Probe pin holder for steel shims measurig |
| 04 | DX75624 | Dial Gauge Support |
| 5 | DX75621 | Injector centering plate |
| 06 | DX75626 | Pin with probing small plate |
| 07 | DX75628 | ± 3 mm probing pin for needle measuring |
| 08 | DX75627 | Probing pin for coil measuring |
| 09 | DX75634 | ± 2,8 mm probing pin for needle measurig |
| 10 | DX75629 | Brass probing pin |
| 11 | DX75630 | 1x2x130 probing pin |
| 12 | DX75631 | 2x38 probing pin |
| 13 | DX75632 | 2x94 probing pin |
| 14 | DX75635 | 2x130 probing pin |
| 15 | DX75739 | Aluminum rings probing pin adaptor |
| 16 | DX75639 | 2 pcs. fixing knobs kit |
| 17 | DX75640 | Dial gauge support |

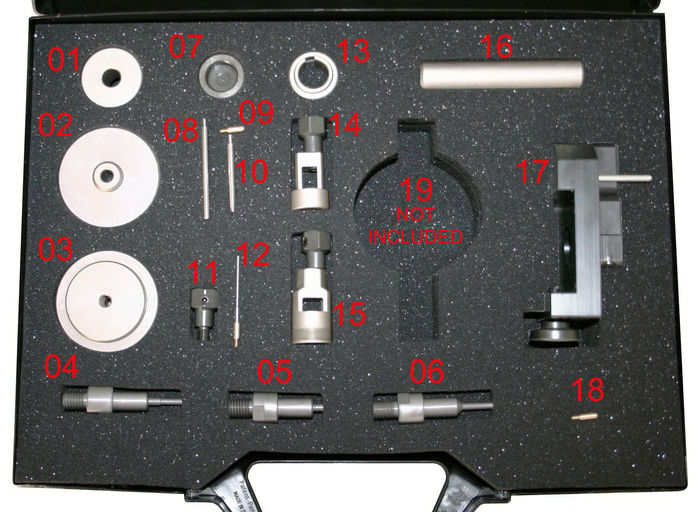

DX75282 CASE
COMPONENTS
| NUMBER | COD. | DESCRIPTION |
| 01 |
DX75272 |
Threaded adaptor for Denso Coil setting (use on Giuditta press) |
| 02 |
DX75274 |
Holder for setting coil stop sleeve on Bosch 2.1 inj. (use on Giuditta press) |
| 03 |
DX75273 |
Holder for setting Denso injectors coil (use with Giuditta press) |
| 04 |
DX75275 |
Extractor pin for coil stop sleeve on Bosch 2.1 inj. (use with Giuditta press) |
| 05 |
DX75276 |
Inserter pin for coil stop sleeve on Bosch 2.1 inj. (use with Giuditta press) |
| 06 | DX75271 |
Setting pin for Denso inj. Coil (use with Giuditta press |
| 07 |
DX75278 |
Inserter adaptor for coil stop sleeve on Bosch 2.1 inj. (use with Giuditta press) |
| 08 |
DX75712 | Dial gauge probe pin size 58x4 (use on Trickytec) |
| 09 | DX75735 | Dial gauge probe pin extension |
| 10 | DX75714 | Dial gauge probe pin size 42x4 (use on Trickytec) |
| 11 | DX75279 | Probe pin for dial gauge to use with DX75273 holder plate. |
| 12 | DX75711 | Dial gauge probe pin size 50x2x1.2 (use on Trickytec) |
| 13 |
DX75736 |
Bosch CRIN injector anchor fixing tool. |
| 14 | DX75277 | Mechanical measuring tool for Bosch inject. coil. (use on Trickytec) |
| 15 | DX75636 | Dial gauge holder for Denso inject. coil measuring |
| 16 | DX75734 | Stop bolt to use on (Denso) injector disassembly (use with Giuditta press) |
| 17 | DX75738 | Dial Gauge holder (use with Giuditta press) |
| 18 | DX75737 | Dial Gauge pull up pin |
| 19 | DX75394 |
INDISPENSABLE! NOT INCLUDED TESA high precision micrometer dial gauge (to be ordered separately)
|
